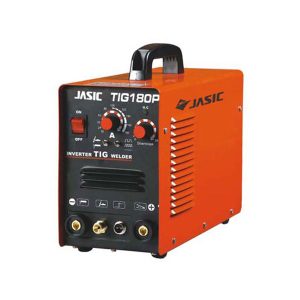

TIG 180A
Features:
TIG/MMA function
TIG180AII/TIG200AII,ABS plastic case,water splash resistant,anti-static,anti-corrosive.
Small size,light weight,high quality construction and power saving.
High frequency DC TIG ignition
Smooth arc and stable welding performance,ideal for welding mild steel,stainless steel,copper and titanium.
Automatic over-voltage and over-current protection.
Quick connect torch and gas fittings.
Auto compensation for voltage fluctuation.
2T/4T function optional on TIG180A upon request,double voltage input 110V/220V available upon request.
High strength case construction for industrial
Applications.
Parameters:
| Type | TIG180A |
| Input volt（V） | 1 phase AC220V±15% |
| Frequency (Hz) | 50/60 |
| Rated input power capacity（KVA） | 3.9 |
| No-load volt（V） | 56 |
| Output current range | 10～180A |
| Rated output volt（V） | 17.2V |
| Post-flow Time（S） | 2.5/1-10 |
| Current of MMA(A) | 10-160 |
| Duty cycle | 60% |
| No-load loss（W） | 40 |
| Arc-starting | HF |
| Efficiency | 85% |
| Power factor | 0.93 |
| Insulation class | B |
| Protection class | IP23 |
| Weight （kg） | 8.8/7.8 |
| Dimensions | 371×155×295/376×172×304 |
